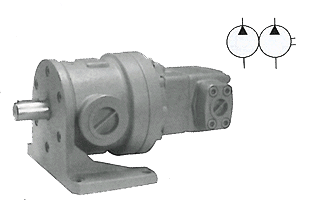

150T+R1 SERIES |
 |
■ 特點 FEATURES
- 共用同一心軸，同一馬達而構成高低壓泵。
- 嘈音小，流量大，低成本，高容積效率設計。
- Employed same shaft & motor and formed a hi-low pressure pump set.
- Low noise level, large flow rate, low cost & hi-volumetric efficiency design.
|

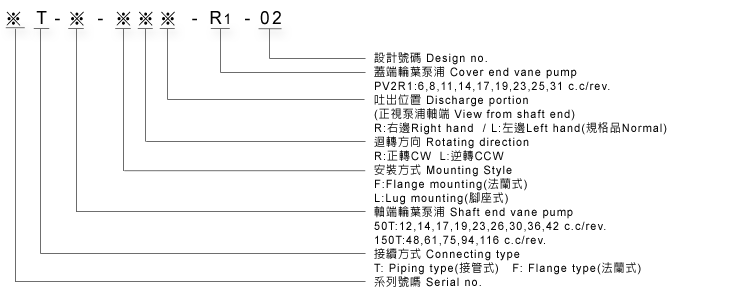

■ 訂購索引 / ORDERING INDEX
■ 規格 SPECIFICATIONS
型式
Model |
吐出能力
Delivery capacity |
最大壓力
Max. pressure
(kgf/cm²) |
額定速度
Rated speed |
迴轉速度(rpm)
Running Speed |
最高
Max. |
最低
Min. |
| 1000 |
1200 |
1500 |
1800 |
| 150T-48 |
48.3 |
57.9 |
72.4 |
86.9 |
90 |
1800 |
900 |
| 150T-61 |
61.5 |
73.8 |
92.2 |
110.7 |
90 |
1800 |
900 |
| 150T-75 |
75.5 |
90.6 |
113.2 |
135.9 |
90 |
1500 |
900 |
| 150T-94 |
94.2 |
113.0 |
141.3 |
169 |
70 |
1500 |
900 |
| 150T-116 |
116.3 |
139.6 |
174 |
- |
70 |
1200 |
900 |
| PV2R1-6 |
6.2 |
7.4 |
9.3 |
11.2 |
210 |
1800 |
1200 |
| PV2R1-8 |
8.1 |
9.7 |
12.1 |
14.6 |
245 |
1800 |
950 |
| PV2R1-11 |
11.2 |
13.4 |
16.8 |
20.1 |
245 |
1800 |
950 |
| PV2R1-14 |
14.3 |
17.1 |
21.5 |
25.7 |
245 |
1800 |
950 |
| PV2R1-17 |
17.1 |
20.5 |
25.6 |
30.7 |
245 |
1800 |
950 |
| PV2R1-19 |
19.2 |
23.0 |
28.8 |
34.5 |
245 |
1800 |
950 |
| PV2R1-23 |
23.3 |
27..9 |
34.9 |
41.9 |
245 |
1800 |
950 |
| PV2R1-25 |
26.1 |
31.3 |
39.1 |
46.9 |
245 |
1800 |
950 |
| PV2R1-31 |
31.1 |
37.3 |
46.6 |
55.8 |
245 |
1500 |
950 |
|
|
|
