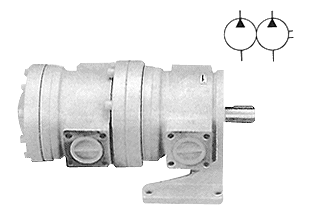

150FF SERIES |
 |
■ 特點 FEATURES
- 共用同一心軸及馬達，節省空間。
- 阻抗低之吸入口設計，運轉滑順，穩定性高，嘈音小。
- 備有正逆轉及軸徑22mm供客戶選擇(一般軸徑為19mm)。
- Employed same shaft & motor, occupied little space.
- Designed of suction orifice for low suction resistance running smoothly, hi-stability & low noise level.
- Equipped with forward-reverse rotating and 22mm shaft dia, etc., for customer to select (in general, shaft dia 19mm).
|

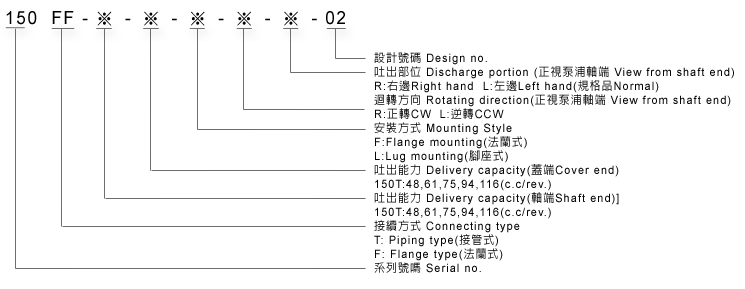

■ 訂購索引 / ORDERING INDEX
■ 規格 SPECIFICATIONS (前泵Front pumps 後泵Rear pumps)
型式
Model |
吐出能力
Delivery capacity |
最大壓力
Max. pressure
(kgf/cm²)
|
額定速度
Rated speed |
迴轉速度(rpm)
Running Speed |
最高
Max. |
最低
Min. |
| 1000 |
1200 |
1500 |
1800 |
| 150T-48 |
48.3 |
57.9 |
72.4 |
86.9 |
90 |
1800 |
900 |
| 150T-61 |
61.5 |
73.8 |
92.2 |
110.7 |
90 |
1800 |
| 150T-75 |
75.5 |
90.6 |
113.2 |
135.9 |
90 |
1500 |
| 150T-94 |
94.2 |
113.0 |
141.3 |
- |
70 |
1500 |
| 150T-116 |
116.3 |
139.6 |
- |
- |
70 |
1200 |
| 150T-48 |
48.3 |
57.9 |
72.4 |
86.9 |
90 |
1800 |
| 150T-61 |
61.5 |
73.8 |
92.2 |
110.7 |
90 |
1800 |
| 150T-75 |
75.5 |
90.6 |
113.2 |
135.9 |
90 |
1500 |
| 150T-94 |
94.2 |
113.0 |
141.3 |
- |
70 |
1500 |
| 150T-116 |
116.3 |
139.6 |
- |
- |
70 |
1200 |
|
|
